600mmeffective board cover
THERMAL CEILING BOARDS
Isoboard ceiling boards
The board. The finish. The comfort.
Price range: R167.12 through R1 ,237.89 Including VAT
Choose Isoboard ceiling boards by thickness, finish and board length. Calculate the quantities for your room, then ask Cape Ceilings & Drywalling for supply or a complete installed ceiling.
Choose the exact product option to calculate quantities.
Calculate my quantitiesNeed installation? Discuss your project with CCDW.
THE PRODUCT, EXPLAINED
A ceiling surface that also insulates.

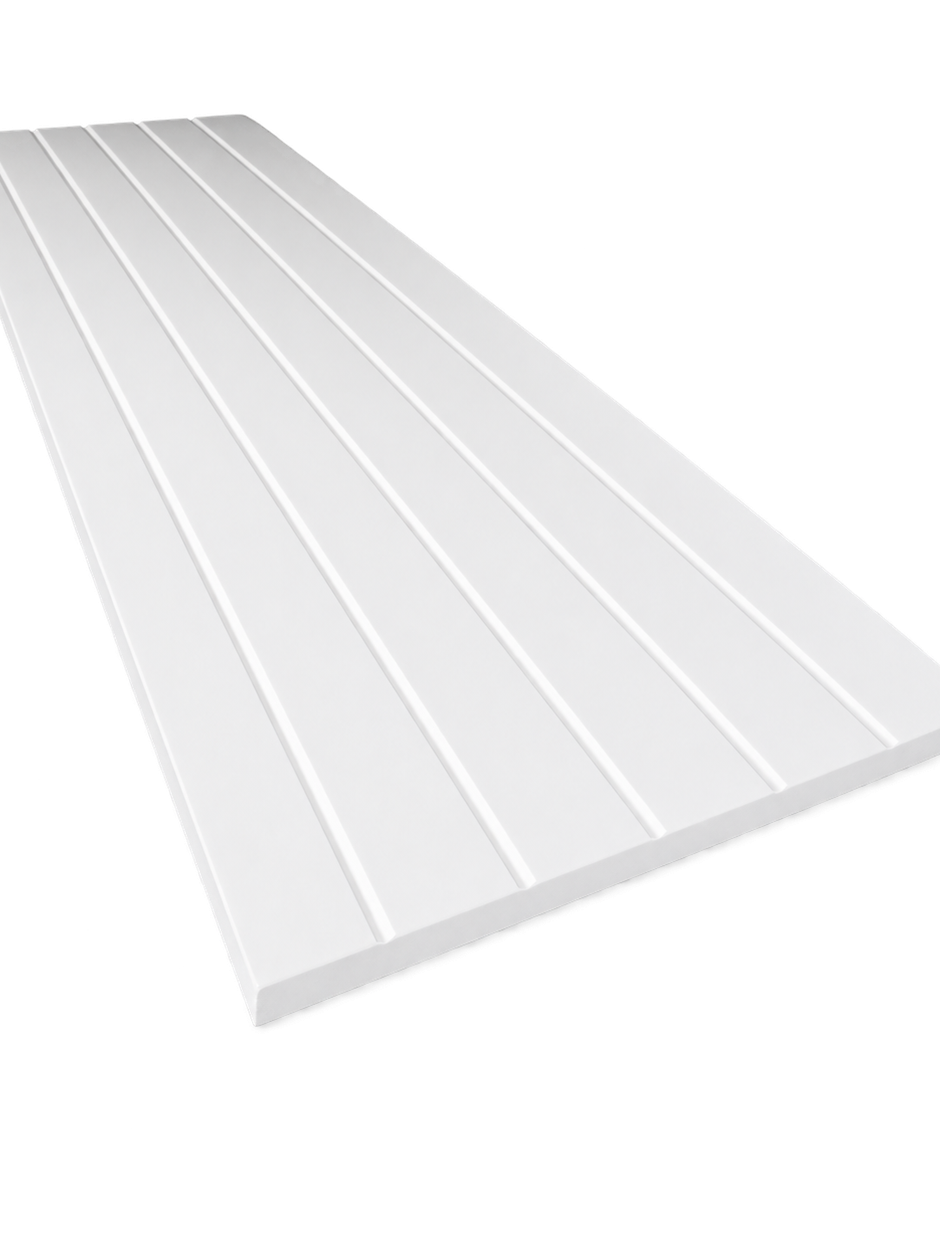

Isoboard ceiling boards are rigid extruded polystyrene (XPS) boards used in specified insulated ceiling systems. The board can remain visible as the finished ceiling surface, rather than being hidden above a separate plasterboard lining. This makes the thickness, visible grooves and direction of the boards part of the room design as well as the material order.
Thermal resistance
Select a thickness using its declared material R-value and the roof design.Measured quantities
Count full board widths and a suitable length before allowing for spare material.KNOW WHAT YOU ARE ORDERING
Isoboard ceiling boards: Sizes & specifications.
| Thickness | Effective width | Material R-value | Ordering note |
|---|---|---|---|
| 30mm | 600mm | 1.143 | Confirm current availability |
| 40mm | 600mm | 1.524 | Confirm current availability |
| 50mm | 600mm | 1.905 | Confirm current availability |
| 80mm | 600mm | 3.049 | Made to order |
R-values below are the manufacturer’s published material values, in m²·K/W, using a thermal conductivity of 0.02624 W/(m·K). They are not the total R-value of an installed roof. A project’s insulation requirement depends on the complete roof or ceiling system.
Published full board lengths4.8m, 5.4m, 6m, 6.6m, 7.2m, 8m. Choose an available length in the product options above, then calculate against that exact item.
Think in full board courses.
Board direction changes both the required length and the number of courses. Compare directions in the calculator, then check the supports, profile and finishing details with the final installation plan.CALCULATE THE ITEM YOU ARE ORDERING
Isoboard ceiling boards calculator
Your selected product supplies the board dimensions or roll coverage. Change the product option above to compare a different size.
YOUR MATERIAL ESTIMATE
m² →
Measure the space.
Count the materials.
Calculate using the selected item’s actual sale-unit coverage, then use that quantity in the product form.
Your estimate
Copy the estimate for an enquiry
Quantities are rounded up to whole boards, rolls or sheets. Allowances do not replace a checked cutting or installation plan. Openings and reusable offcuts are not automatically deducted. “Use this quantity” updates the product form only; it does not add anything to a cart or quote. The normal WooCommerce form checks price, stock and availability.
SPECIFY IT FOR THE SPACE
Choosing Isoboard ceiling boards for your space.
Choose the look before the cut list.

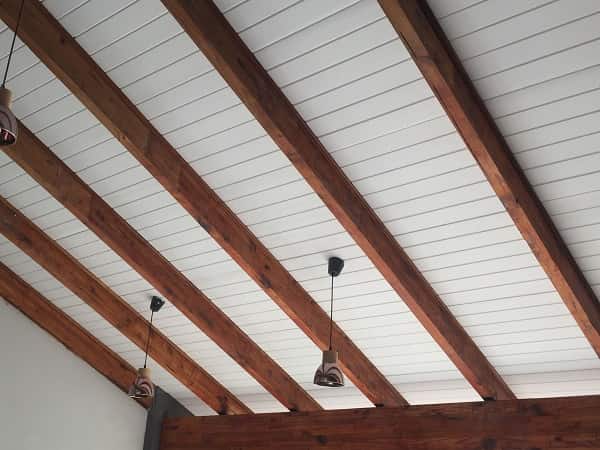

Isoboard ceiling boards can create a regular lined finish across a room or sit within exposed roof timbers. Grooved finishes, edge details and board direction change how the ceiling reads. Ask to confirm the exact profile and whether any painting or decorative finishing is included. A sample is useful when matching an existing ceiling.Choose thickness for the roof design.
A thicker XPS board offers more thermal resistance within the same product range. It also changes the depth available around beams, cornices and other junctions. Discuss the existing roof, any insulation already fitted and the intended ceiling detail before choosing Isoboard ceiling boards on thickness alone. We can quote supply against a specification or assess an installation.Plan the supporting details.
Board quantities are only one part of the ceiling. The substrate, supporting members, fixing arrangement, perimeter finish and penetrations must suit the manufacturer’s system. Downlights, wiring and heat-producing fittings need suitable clearances and detailing. XPS is combustible; it must not be treated as a fireproof ceiling material.Keep the finish separate from a leak repair.
XPS resists moisture uptake, but that does not make a leaking roof acceptable. Resolve water ingress and inspect the structure before fitting a new ceiling. The intended use of the room, ventilation and any existing dampness should be discussed when ordering Isoboard ceiling boards for a renovation.
SUPPLY IT. OR LET US FIT IT.
One material decision. Two ways to order.
If you already have a ceiling design and installer, send the board thickness, profile and cut list for a supply quote. If you need the full job, we can discuss the room, access and finish as part of our Isoboard ceiling installation service. The product list and the installation scope are agreed together so the quote reflects what you actually need. Isoboard ceiling installationGET A QUOTE THAT MATCHES THE JOB
Isoboard ceiling boards, quoted for your project.
For Isoboard ceiling boards, send your material estimate with the details opposite. Use the selected product’s displayed price and availability when ordering online. Ask us to confirm delivery and any installation work in your project quote. Request supply or installation- Board thickness, profile and preferred lengths
- Room dimensions or a drawing, plus the ceiling direction
- Supply only or installed, with your suburb and access details
- Copy your calculator summary into the enquiry.
BEFORE YOU ORDER
Isoboard ceiling boards questions
What sizes are Isoboard ceiling boards?
The manufacturer lists 600mm effective width and standard full lengths of 4.8, 5.4, 6.0, 6.6, 7.2 and 8.0 metres. The calculator uses the exact length of the product variation you select above. Confirm the final cut list and availability before ordering.Does 80mm Isoboard need a special order?
The manufacturer identifies 30mm, 40mm and 50mm as generally manufactured for stock, with 80mm manufactured to order. This is a manufacturer range description, not a promise of current CCDW stock. We confirm availability and lead time with the quote.Can I use the calculator for boards between beams?
Calculate each separate bay using its own dimensions, then combine the lists. The calculator treats one rectangle as one uninterrupted area. It cannot inspect beams, supports or the opportunity to reuse cut pieces in another bay.Are Isoboard ceiling boards soundproof?
XPS is primarily a thermal insulation material. It should not be presented as a complete soundproofing solution. If noise is the priority, discuss a designed ceiling or partition system, including suitable absorptive insulation and the other construction details.What determines the price?
Thickness, profile, supplied lengths, quantities and transport affect the material quote. An installed price also depends on access, preparation, fixing details and finishing. Request a quote for your specification; the quantity calculator does not invent a selling price.COMPLETE THE MATERIAL PLAN
Compare the right options.
